2021 Acura TLX BaseFACTORY OEM SERVICE PROCEDURE

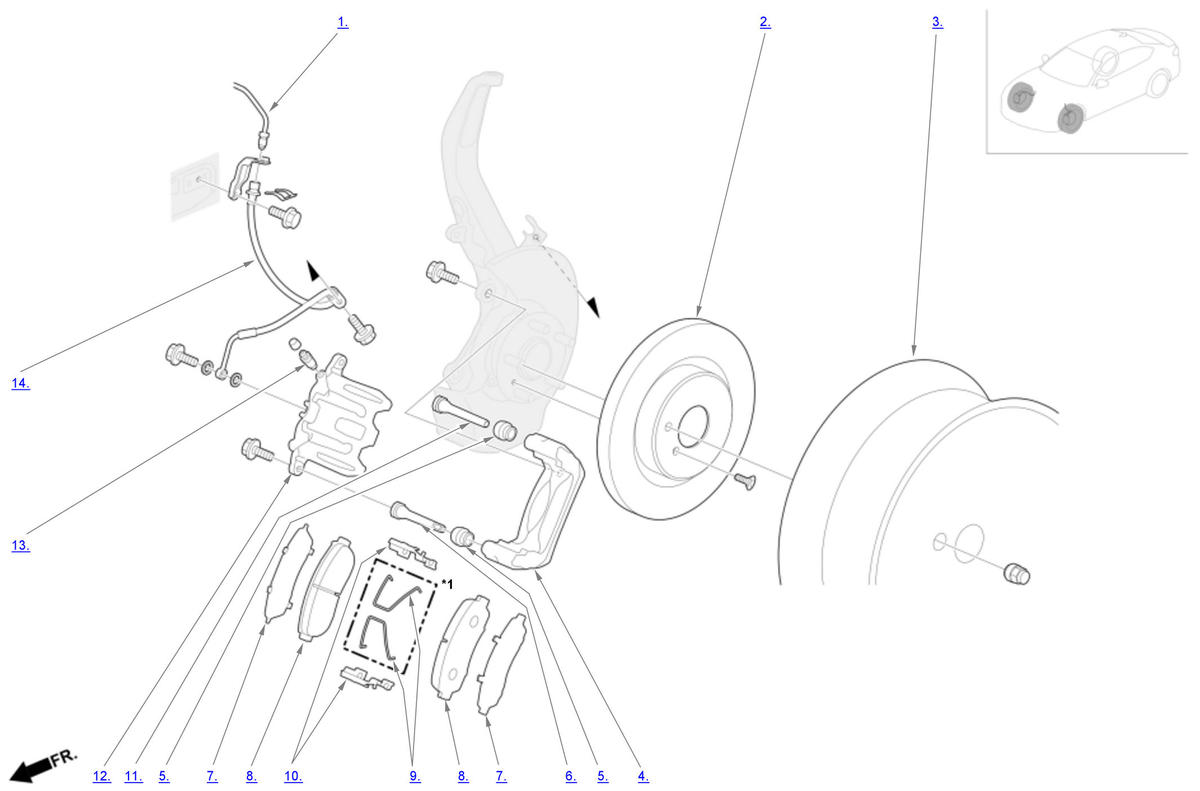

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: For some models |
Front Brake Area Components
| Component Name | Callout |
|---|---|
| Brake Line | 1 |
| Brake Disc | 2 |
| Wheel | 3 |
| Caliper Bracket | 4 |
| Pin Boot | 5 |
| Caliper Pin A | 6 |
| Pad Shim | 7 |
| Brake Pad | 8 |
| Pad Return Spring | 9 |
| Pad Retainer | 10 |
| Caliper Pin B | 11 |
| Caliper Body | 12 |
| Bleed Screw | 13 |
| Brake Hose | 14 |

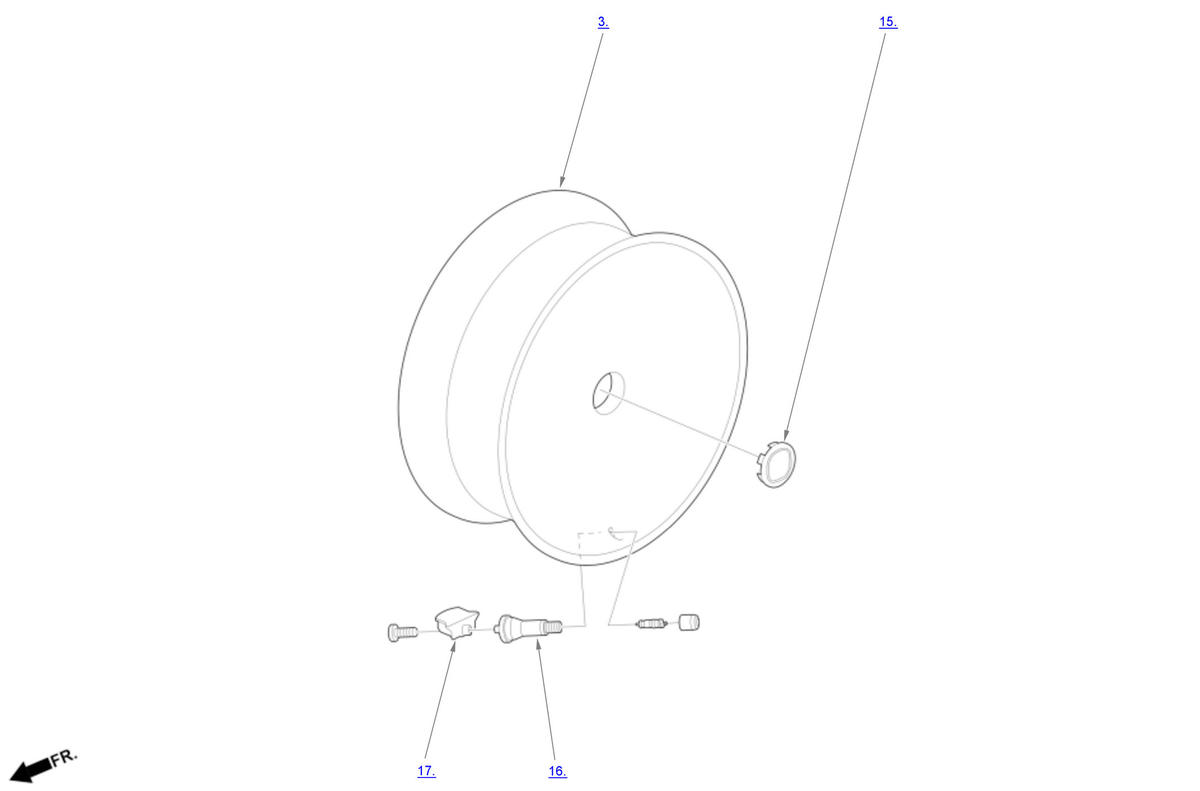

| Wheel Cap | 15 |
| Valve Assembly | 16 |
| Tire Pressure Sensor Housing | 17 |
