2015 Acura TLX Base, 2.4L EngFACTORY OEM SERVICE PROCEDURE
A/C Compressor Variable Capacity Control Solenoid Test: Test
- A/C Compressor Variable Capacity Control Solenoid - Test

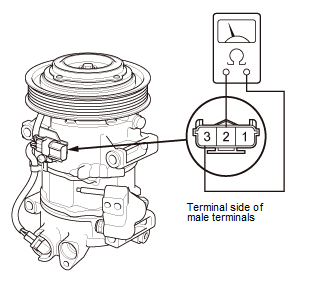

1. Measure the resistance between A/C compressor clutch 3P connector terminals No. 2 and No. 3. If the resistance is not within specifications, replace the A/C compressor . Variable Capacity Control Solenoid Resistance:
10.1-11.1 - at 68 °F (20 °C)
