Customize Function
How to Set the Setting Temperature Shift
The climate control unit has a function to revise setting temperature +1.5 °C (+2.7 °F) or - 1.5 °C (-2.7 °F) degrees.
The setting temperature is only displayed in degrees centigrade (°C).
- How to set.
- Turn the vehicle to the OFF (LOCK) mode then the ACCESSORY mode.
NOTE : Make sure the ODMD (TM) is activated and the image is displayed on the screen.

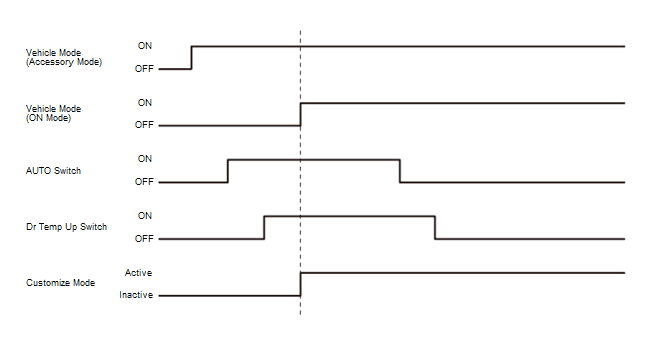

- Press and hold the AUTO switch.
- With the AUTO switch pressed, press and hold the up side of the driver's temperature control switch.
- With the AUTO switch and up side of the driver's temperature control switch pressed, turn the vehicle to the ON mode.

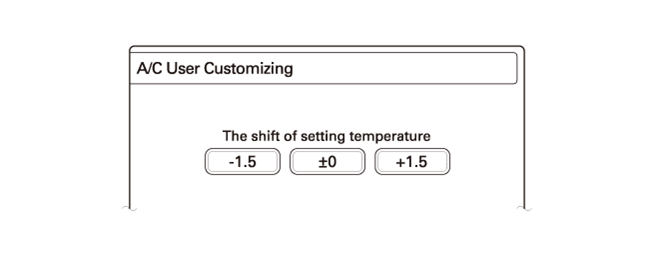

- Select the display icon.
- Turn the vehicle to the OFF (LOCK) mode then the ACCESSORY mode.
- How to cancel A/C User Customizing.
- Turn the vehicle to the OFF (LOCK) mode.
