DTC P15BF: CMP Sensor Signal Intermittent Interruption (2015-17)
General Description

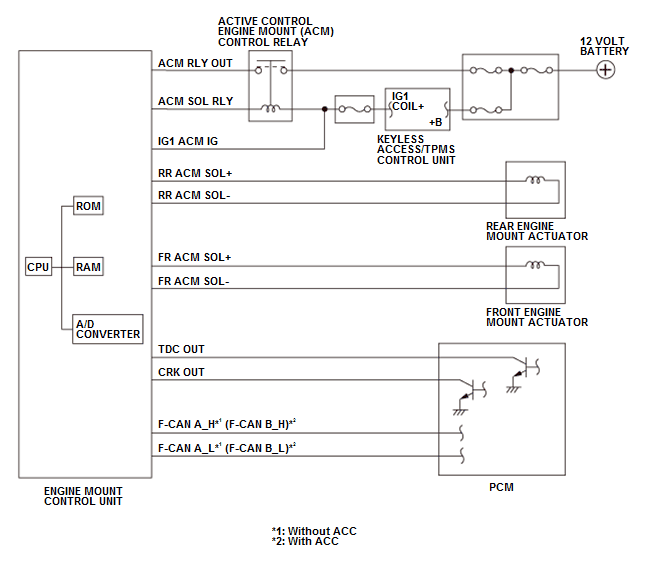

Without SH-AWD:

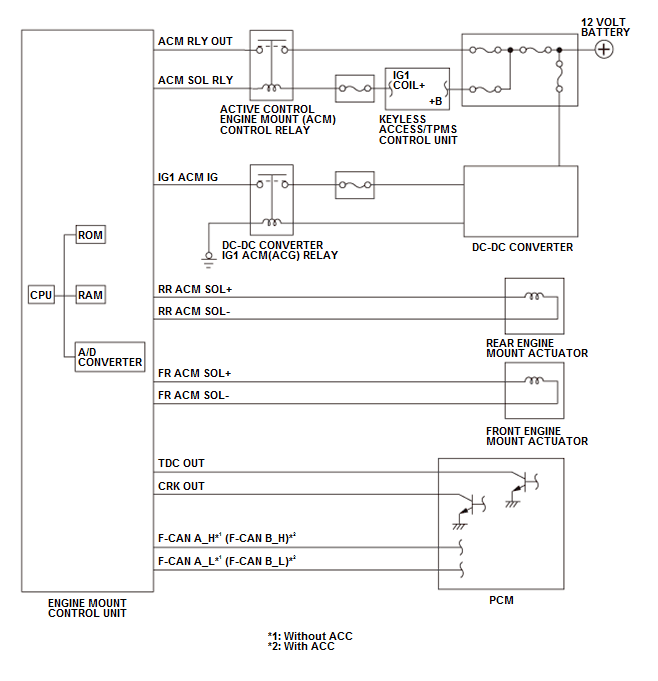

With SH-AWD:
The engine mount control system controls the engine mounts electronically. The system consists of the engine mount actuators, the engine mount control unit, and the powertrain control module (PCM). The engine mount control unit uses the crankshaft and camshaft position sensor outputs (received from the PCM) to estimate engine vibration. The engine mount control unit then sends signals to the engine mount actuators to command the engine mounts to push and pull on the engine to counteract engine vibration. The engine mount control unit monitors the TDC OUT signal input to the engine mount control unit, and when an abnormal condition continues for a set time, the engine mount control unit detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | - |
| DTC Type | One drive cycle, MIL off |
| OBD Status | N/A |
Enable Conditions
| Condition | |
|---|---|
| State of the engine | Running |
| No active DTCs set (prevents monitor from running) | P15B0, P15BE, P15C0 |
Malfunction Threshold
Normally, there are 10 CMP pulses per two revolutions. A malfunction is detected when there are more than 10 CMP pulses or less than 10 CMP pulses at least 512 times.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- CMP sensor failure
- CMP sensor line abnormal
- Engine mount control unit internal circuit failure
- PCM internal circuit failure
Confirmation Procedure
Operating Condition
Start the engine, and let it idle for at least 20 seconds.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
