Fuel Pressure Test: Test
- Fuel Pressure - Relieve
- Fuel Pressure - Test

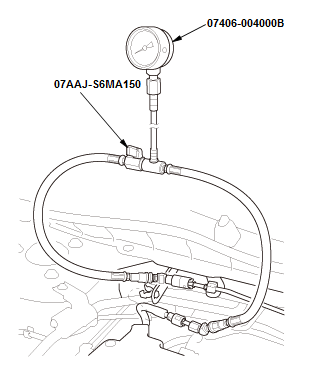

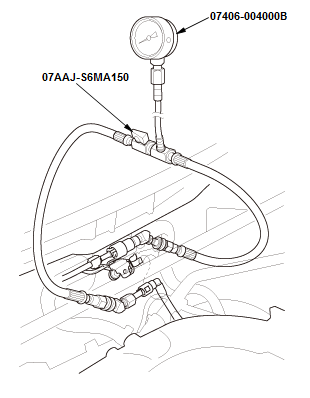

L4 engine V6 engine
NOTE: If you were referred to this procedure from a troubleshooting procedure, test the fuel pressure under the same conditions the malfunction occurred (engine speed, load, throttle position, etc.). 1. Disconnect the quick-connect fitting and attach the fuel pressure gauge set. Check for leaks with the gauge set attached.
2. Start the engine, and let it idle.
- If the engine starts, go to step 3 and read the fuel pressure gauge.
- If the pump does not run and any DTCs are stored, do the DTC troubleshooting - Refer to: DTC Troubleshooting Index .
- If the pump does not run and no DTCs are stored, do the fuel pump circuit troubleshooting .
3. Read the fuel pressure gauge. The pressure should be:
- If the pressure is OK, the test is complete.
- If the pressure is out of specification, replace the fuel pressure regulator and the fuel filter, then recheck the fuel pressure - Refer to: Fuel Tank Unit Disassembly and Reassembly (Without SH-AWD) or Fuel Tank Unit Disassembly and Reassembly (With SH-AWD) .
Model Fuel Pressure L4 engine 390 - 440 kPa (3.98 - 4.49 kgf/cm 2, 56.6 - 63.8 psi) V6 engine 410 - 460 kPa (4.18 - 4.69 kgf/cm 2, 59.5 - 66.7 psi)
