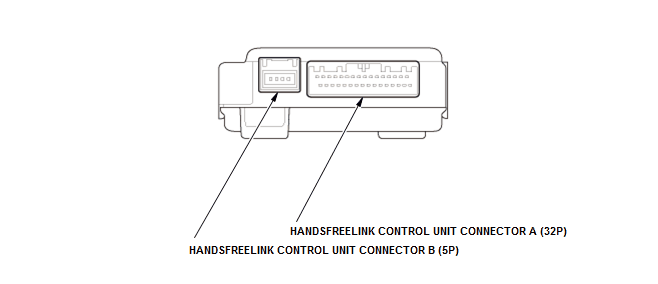

HandsFreeLink Control Unit Connector for Inputs and Outputs(With navigation) (2016-17)

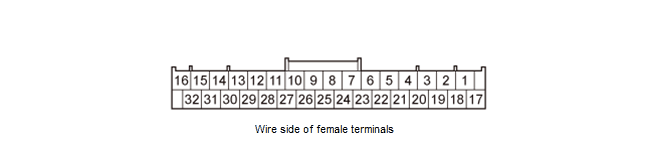

HANDSFREELINK CONTROL UNIT CONNECTOR A (32P)
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| A1 | RED | MIC GND | Ground for HFL microphone |
| A2 | WHT | MIC + | Inputs microphone signal positive |
| A3 | BLK | SH MIC | Shield for terminal No. 2 |
| A4 | GRN | TELEM SIG + | Outputs HFL prompts and telephone sound signal |
| A5 | BLK | GA AUDIO L + | Outputs sound signal |
| A6 | RED | GA AUDIO R + | Outputs sound signal |
| A7 | WHT | MIC PWR | Power source for HFL microphone |
| A8 | Not used | Not used | - - - |
| A9 | Not used | Not used | - - - |
| A10 | Not used | Not used | - - - |
| A11 | YEL | HFT SIRI SIG | Outputs voice signal for server voice recognition |
| A12 | PUR | GA BUS - | GA-Net bus communication signal |
| A13 | LT BLU | GA BUS+ | GA-Net bus communication signal |
| A14 | LT GRN | HFT MUTE | HFL mute signal |
| A15 | BLU | HFT/NAVI REMOTE SW | Detects control signal from HFL switch |
| A16 | BRN | GA GND | Ground for HandsFreeLink control unit |
| A17 | PNK | HFT-NAVI MIC - | Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A18 | BLU | HFT-NAVI MIC + | Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A19 | GRY | SH TELEM SIG | Shield for terminals No. 4 and No. 20 |
| A20 | RED | TELEM SIG - | Outputs HFL prompts and telephone sound signal |
| A21 | GRN | GA AUDIO L - | Outputs sound signal |
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| A22 | WHT | GA AUDIO R - | Outputs sound signal |
| A23 | GRY | SH GA AUDIO | Shield for terminals No. 5, No. 6, No. 21, and No. 22 |
| A24 | YEL | GA SYS ON | Inputs signal for HandsFreeLink control unit switching on/off |
| A25 | Not used | Not used | - - - |
| A26 | GRY | SH HFT SIRI | Shield for terminals No. 11 and No. 27 |
| A27 | BRN | HFT SIRI GND | Outputs voice signal for server voice recognition |
| A28 | GRY | SH GA BUS | Shield for terminals No. 12 and No. 13 |
| A29 | Not used | Not used | - - - |
| A30 | Not used | Not used | - - - |
| A31 | Not used | Not used | - - - |
| A32 | RED | GA +B | Continuous power source from audio-navigation unit |

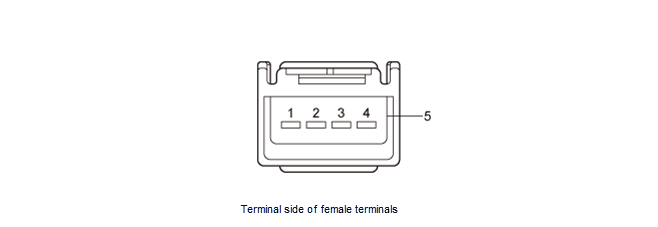

HANDSFREELINK CONTROL UNIT CONNECTOR B (5P)
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| B1 | - - - | HFT USB GND | Ground for communication signal |
| B2 | - - - | HFT USB DATA + | Communication signal |
| B3 | - - - | HFT USB DATA - | Communication signal |
| B4 | - - - | HFT USB VBUS | Outputs power source for USB device |
| B5 | - - - | HFT USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
