ANC/Active Sound Control Microphone Connector for Inputs and Outputs(With navigation) (2016-17)
The front ANC/active sound control microphone and the front HFL-ANC/active sound control microphone are the same parts.
Front

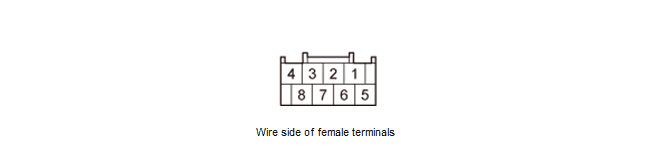

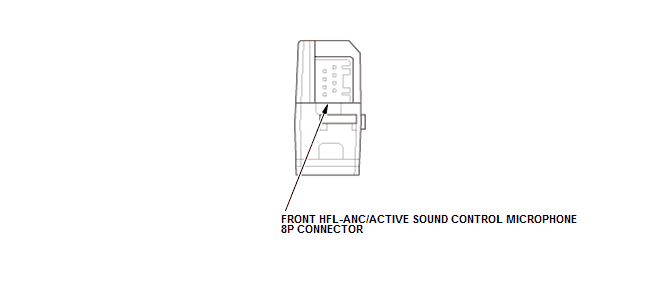

FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE 8P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | RED | MIC GND | Ground for microphone |
| 2 | WHT | MIC+ | Outputs microphone signal |
| 3 | Not used | Not used | - - - |
| 4 | WHT | MIC PWR | Power source from HandsFreeLink control unit |
| 5 | Not used | Not used | - - - |
| 6 | Not used | Not used | - - - |
| 7 | LT GRN | HFT MUTE | Inputs DSP switching signal |
| 8 | WHT | ANC F MIC +8V | Outputs ANC/active sound control microphone signal positive |
Rear

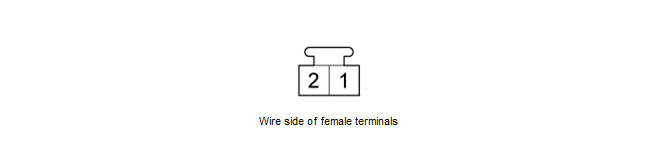

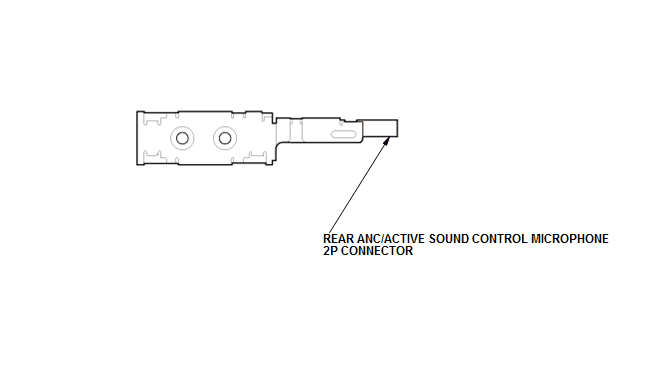

REAR ANC/ACTIVE SOUND CONTROL MICROPHONE 2P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | WHT | ANC R MIC+8V | Outputs rear ANC/active sound control microphone signal positive |
| 2 | GRY | SH ANC R MIC | Shield for terminal No. 2 |
