AcuraLink Button Test: Test
- Roof Console - Remove - Refer to: Headliner Removal and Installation, or Headliner Removal and Installation (2017 2018 2019 2020)
- AcuraLink Button - Test

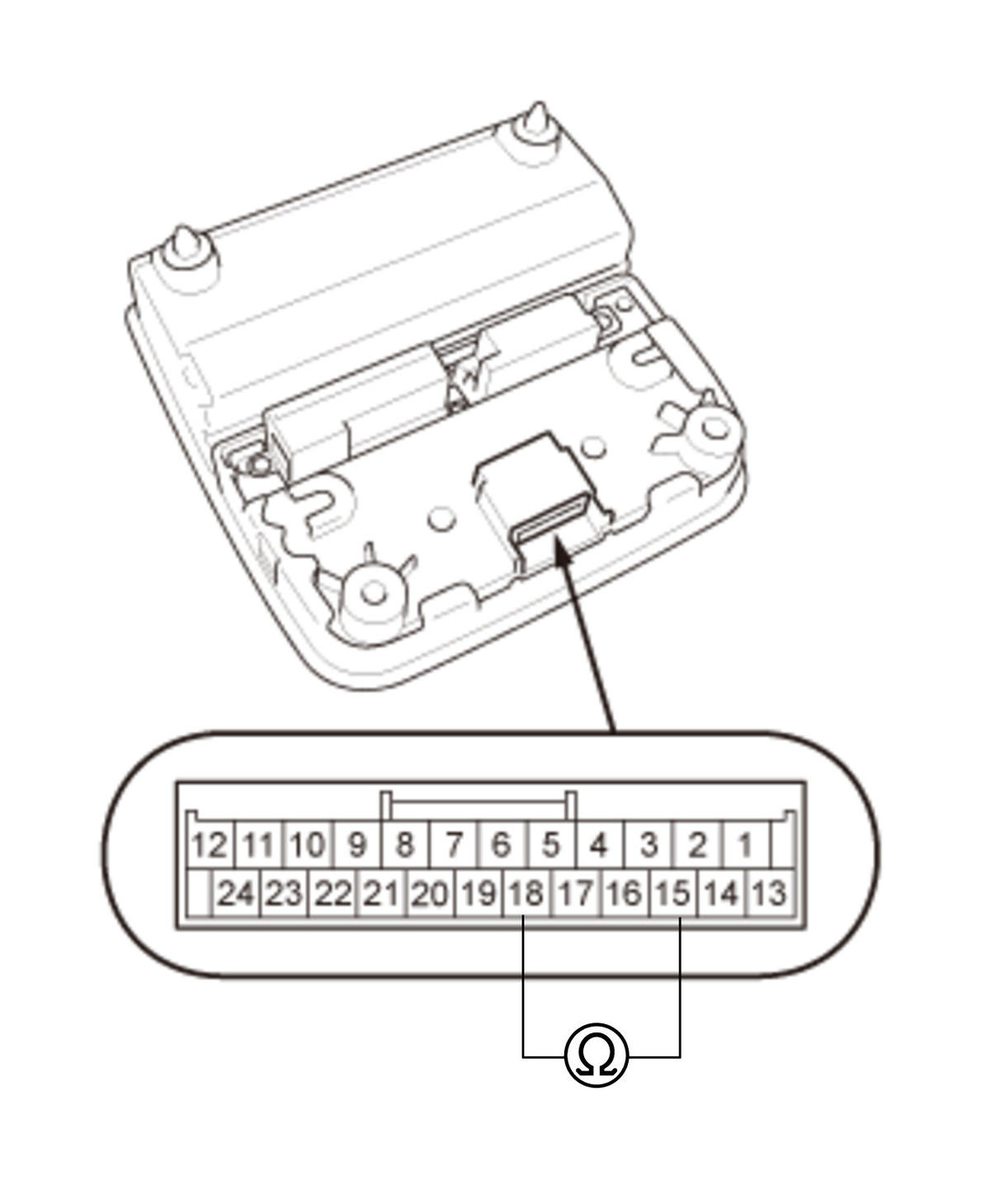

1. Measure the resistance between roof console module 24P connector terminals No. 15 and No. 18 in each switch position according to the table. 2. If the resistance is not as specified, replace the roof console module - Refer to: Headliner Removal and Installation, or Headliner Removal and Installation (2017 2018 2019 2020) .
Button Held Down Resistance No button pressed About 3.1 kΞ© LINK button pressed About 400 kΞ© ASSIST button pressed About 100 Ξ© - All Removed Parts - Install
1. Install the parts in the reverse order of removal.
