2014 Acura TL BaseFACTORY OEM SERVICE PROCEDURE

Yaw Rate-Acceleration Sensor Replacement

NOTE:

Do not damage or drop the sensor as it is sensitive.
Do not use power tools when replacing the sensor.

Turn the ignition-switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
MT: Remove the shift lever assembly (see SHIFT LEVER HOUSING REPLACEMENT ).
Disconnect the yaw rate-acceleration sensor 4P connector (A), then remove the yaw rate-acceleration sensor (B).

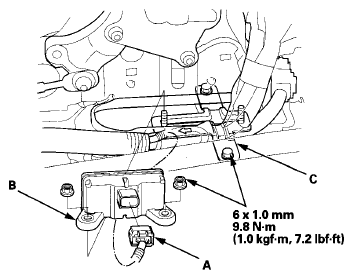

Fig 1: Identifying Yaw Rate-Acceleration Sensor, Sensor 4P Connector, And Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for deformation in the bracket (C). If necessary replace it.
Install the yaw rate-acceleration sensor in the reverse order of removal.
Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
SH-AWD: Do the yaw rate-acceleration neutral position memorization (see SH-AWD® DIFFERENTIAL CLUTCH TORQUE MEMORIZATION ).
