2012 Acura ZDXFACTORY OEM SERVICE PROCEDURE

Yaw Rate-Acceleration Sensor Replacement

NOTE:

Do not damage or drop the sensor as it is sensitive.
Do not use power tools when replacing the sensor.

Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
Remove the center console trims on both sides (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the yaw rate-acceleration sensor 4P connector (A), then remove the yaw rate-acceleration sensor (B).

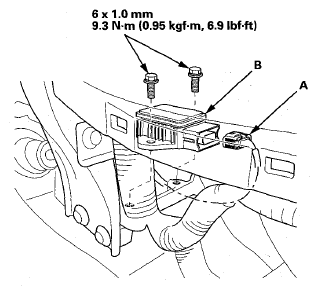

Fig 1: Identifying Yaw Rate-Acceleration Sensor 4P Connector, Yaw Rate-Acceleration Sensor And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the yaw rate-acceleration sensor in the reverse order of removal.
Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
Do the yaw rate-acceleration neutral position memorization for SH-AWD system (see SH-AWD® DIFFERENTIAL CLUTCH TORQUE MEMORIZATION ).
