2012 Acura ZDXFACTORY OEM SERVICE PROCEDURE
Rear Power Window Switch Test/Replacement
- Remove the rear door panel (see REAR DOOR PANEL REMOVAL/INSTALLATION ).

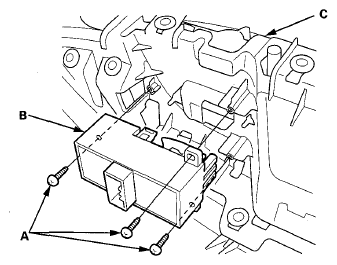

- Remove the three screws (A) and rear power window switch (B) from the armrest assembly (C).
- Swap the rear power window switch with another known-good power window switch and test. If the original power window switch is faulty; replace it.
- Install the switch in the reverse order of removal.
