2012 Acura ZDXFACTORY OEM SERVICE PROCEDURE

Multi-Information Display Indication Pattern

NOTE: Some examples of indication patterns are shown in illustration.

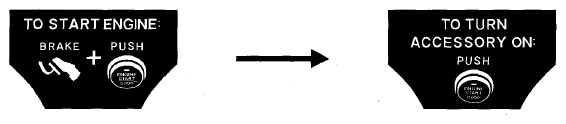

When the door is opened and the power mode is OFF, the display alternates every 3 seconds.

Fig 1: Multi-Information Display Indication Pattern - Door Is Opened And Power Mode Is Off

Courtesy of AMERICAN HONDA MOTOR CO., INC.

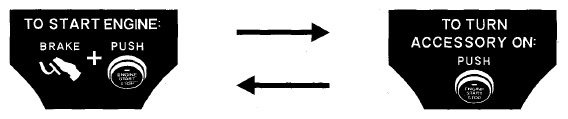

When the power mode is ACC, the display alternates in 3 second.

Fig 2: Multi-Information Display Indication Pattern - Power Mode Is ACC

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the power mode is ON.

Fig 3: Multi-Information Display Indication Pattern - Power Mode Is On

Courtesy of AMERICAN HONDA MOTOR CO., INC.
