2012 Acura ZDX V6-3.7LFACTORY OEM SERVICE PROCEDURE
Timing Component Alignment Marks: Locations
Timing Belt Installation

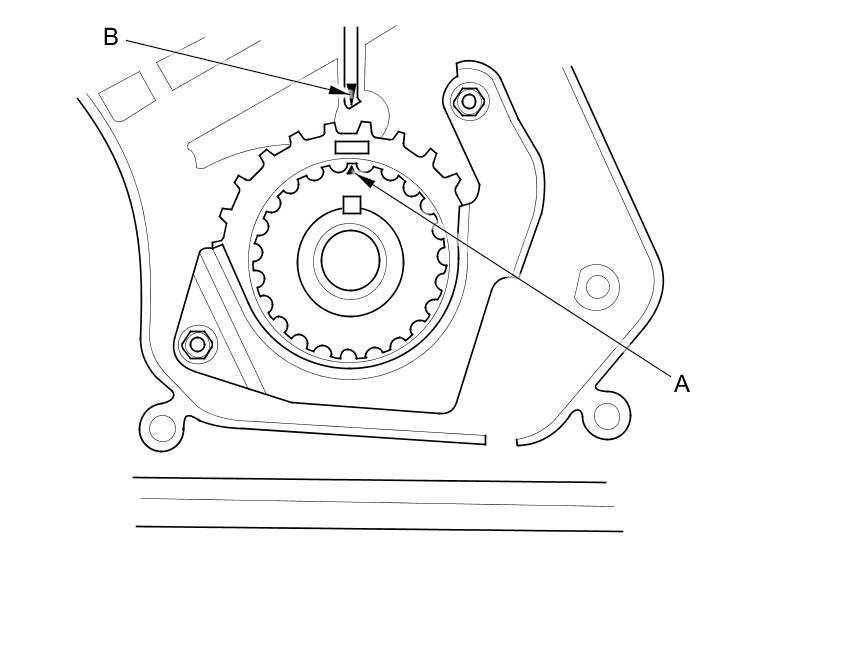

1. Set the timing belt drive pulley to top dead center (TDC) by aligning the TDC mark (A) on the tooth of the timing belt drive pulley with the pointer (B) on the oil pump.

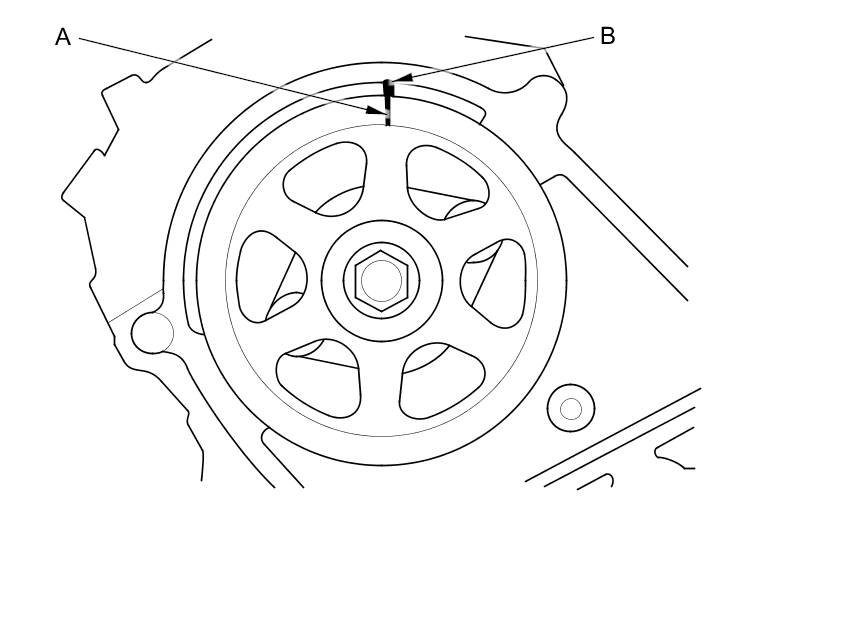

2. Set the camshaft pulleys to TDC by aligning the TDC marks (A) on the camshaft pulleys with the pointers (B) on the back covers.
FRONT
REAR
