2012 Acura ZDX V6-3.7LFACTORY OEM SERVICE PROCEDURE
Humidity Sensor: Testing and Inspection
Humidity/In-Car Temperature Sensor Test
Humidity Sensor Test
NOTE: Before testing the sensor, check for climate control DTCs Initial Inspection and Diagnostic Overview.
1. Remove the humidity/in-car temperature sensor Service and Repair.
2. Connect the humidity/in-car temperature sensor 4P connector.

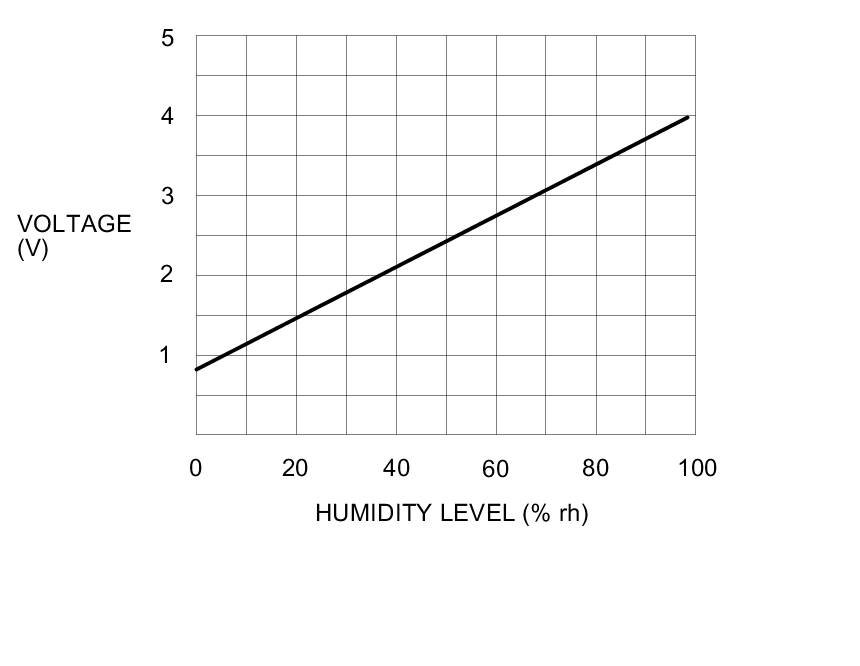

3. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode. Measure the voltage between the terminals with the (+) probe on terminal No. 2 and the (-) probe on terminal No. 3 with the connector connected.
4. If the voltage is not as specified, replace the humidity/in-car temperature sensor Service and Repair.
In-Car Temperature Sensor Test
NOTE: Before testing the sensor, check for climate control DTCs Initial Inspection and Diagnostic Overview.
1. Remove the humidity/in-car temperature sensor Service and Repair.
2. Test the humidity/in-car temperature sensor while holding it in front of the dashboard center vent.
- Measure the resistance with the system set to Max Cool.
- Measure the resistance with the system set to Max Hot.
3. Compare the resistance reading between terminals No. 3 and No. 4 of the humidity/in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.
4. If the resistance is not as specified, replace the humidity/in-car temperature sensor Service and Repair.
5. Clear any DTCs set when you disconnected the humidity/in-car temperature sensor.
