2012 Acura ZDX V6-3.7LFACTORY OEM SERVICE PROCEDURE
Cruise Control Module: Service and Repair

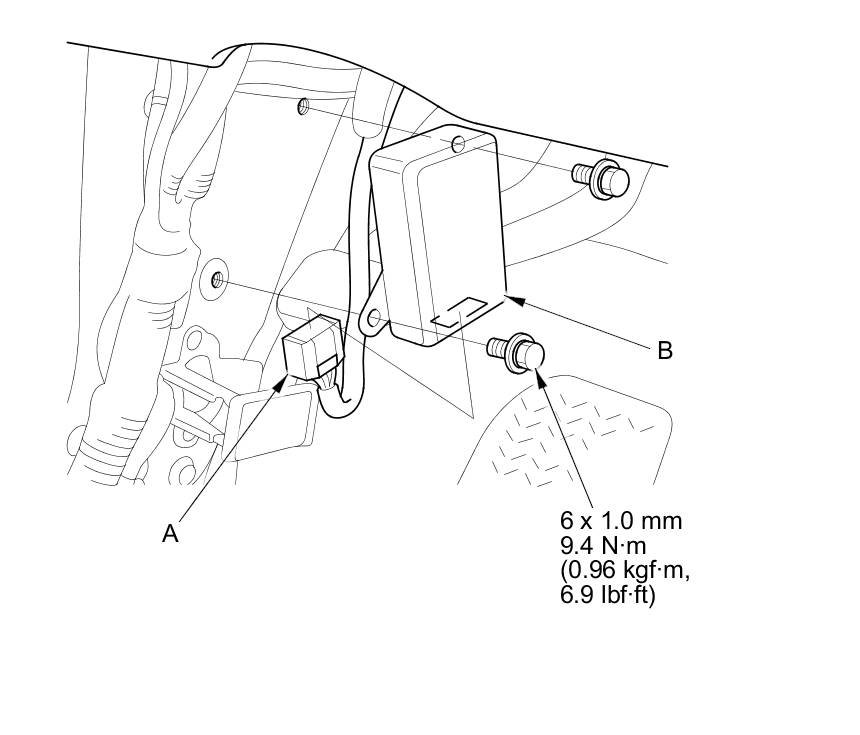

Adaptive Cruise Control (ACC) Unit Removal/Installation
1. Remove the driver's side kick panel.
2. Disconnect the 20P connector (A) from the ACC unit (B), then remove the ACC unit.
3. Install the ACC unit in the reverse order of removal.
NOTE: If a new ACC unit is installed, do these operations:
- Do the ACC unit update Testing and Inspection
- Do the CMBS initial check (DTC100) 100
