2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE

Paddle Shifter Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repair or service.

  1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
  2. Remove the four screws (A) securing the steering wheel rear cover (B).

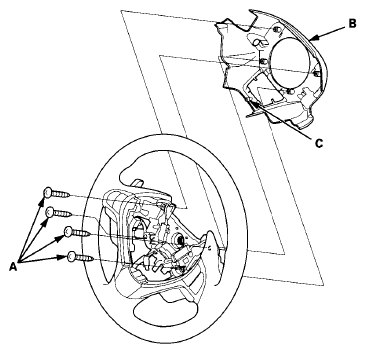

    Fig 1: Identifying Screws, Steering Wheel Rear Cover And Snap-Fit Portion
    G08066655Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull the snap-fit portion (C) up carefully, then remove the steering wheel rear cover.
  4. Disconnect the paddle shifter + (upshift switch) connector or the paddle shifter - (downshift switch) connector. Remove the screws (A) securing the paddle shifter + (upshift switch) (B) or the paddle shifter - (downshift switch) (C), then remove the paddle shifter + or the paddle shifter -.

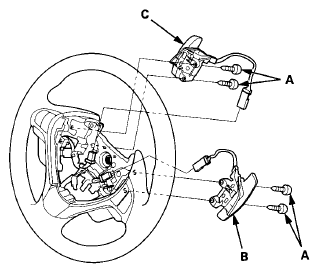

    Fig 2: Identifying Screws, Paddle Shifter + (Upshift Switch) And Paddle Shifter - (Downshift Switch)
    G08066656Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install a new paddle shifter + or a new paddle shifter - on the steering wheel.
  6. Connect the paddle shifter + connector or the paddle shifter - connector securely, and install the connector in the connector holder.
  7. Install the steering wheel rear cover with the screws.
  8. Install the steering wheel (see STEERING WHEEL INSTALLATION ).
