2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE

Intake Air Resonator Removal/Installation

  1. Remove the splash separator (A).
    Fig 1: Identifying Splash Separator
    G08069840Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the air cleaner (see ).
  4. Remove the battery base (A).

    A/T

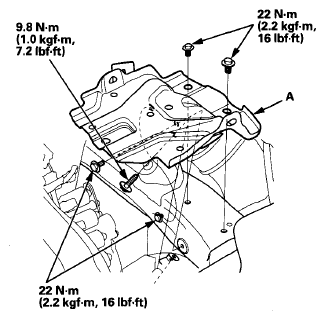

    Fig 2: Battery Base With Torque Specifications (A/T)
    G08069841Courtesy of AMERICAN HONDA MOTOR CO., INC.

    M/T

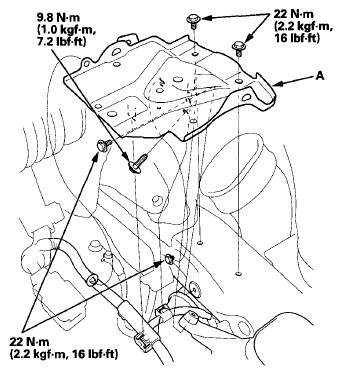

    Fig 3: Battery Base With Torque Specifications (M/T)
    G08069842Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the intake air duct (A).

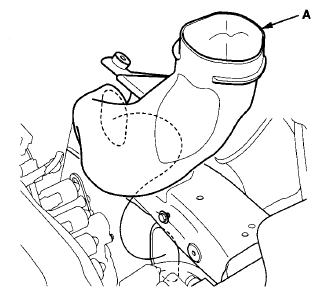

    Fig 4: Identifying Intake Air Duct
    G08069843Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  7. Remove the intake air resonator (A).

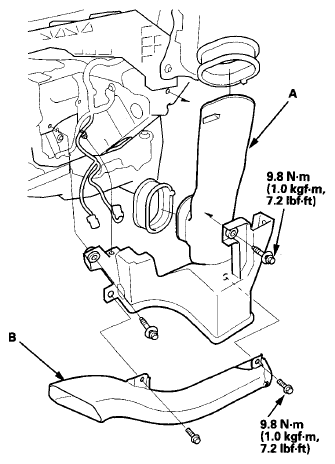

    Fig 5: Intake Air Resonator And Brake Duct With Torque Specifications
    G08069844Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. J37A4 engine: Remove the brake duct (B).
  9. Install the parts in the reverse order of removal.
  10. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
