2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE

With SH-AWD

NOTE: Before you work on the fuel lines and fittings, read the Fuel Line/Quick-Connect Fitting Precautions .

If equipped, remove the quick-connect fitting cover from the fuel line. Raise the cover (A) from the fuel line (B), and remove it as shown.

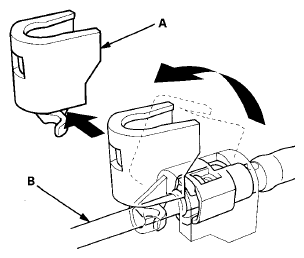

Fig 1: Removing Quick-Connect Fitting Cover From Fuel Line (With SH-AWD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Relieve the fuel pressure .
Check the fuel quick-connect fittings (A) for dirt, and clean them if needed.

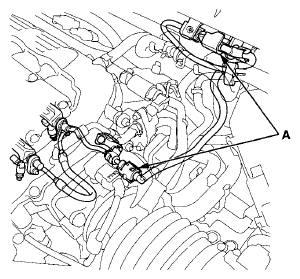

Fig 2: Identifying Fuel Quick-Connect Fittings - With SH-AWD (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
