With SH-AWD
- Check the contact area (A) of the line (B) for dirt or damage, and clean it if needed.

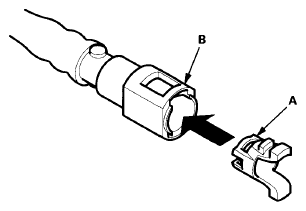

- Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:
- replacing the fuel rail.
- replacing the fuel line.
- replacing the fuel pump.
- replacing the fuel filter.
- replacing the EVAP canister.
- replacing the fuel fill pipe.
- replacing the fuel tank.
- removing the retainer from the line.
Use the same manufacturer retainer and the same size when the replacing the retainer .

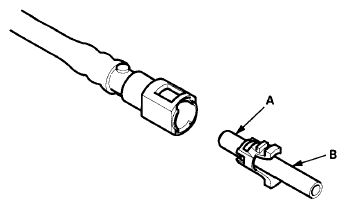

- Before connecting a new fuel line/quick-connect fitting assembly (A), remove the old retainer (B) from the mating line.
