Accelerator Pedal Module Removal and Installation: Installation
2012 Acura TL BaseSECTION Installation

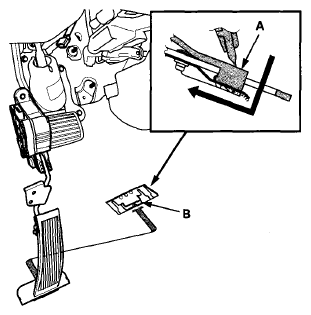

- Install the accelerator pedal pad (A) to the pedal stop (B). Slide the pad until it locks with a clicking sound.
- Install a new clip (A).NOTE:
- The clip must be replaced whenever the accelerator pedal module is installed.
- Make sure that the accelerator pedal module and the clip are secure.
