2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Module Removal and Installation: Removal

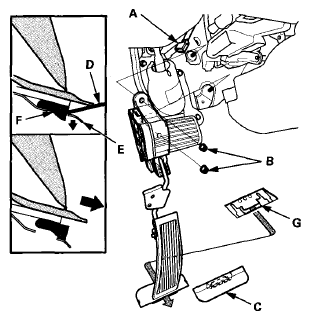

- Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
- Disconnect the APP sensor 6P connector (A).
- Remove the two mounting nuts (B), then remove the clip (C). Using a flat-tip screwdriver (D), push the lock (E), then remove the accelerator pedal pad (F) from the pedal stop (G).
- Remove the accelerator pedal module.
NOTE:
- The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
- If the pedal stop is damaged, replace it by pulling back the carpet (A), and removing the nuts (B), the bolt (C), and the pedal stop (D).
