2012 Acura TL Base
Power Window Master Switch Replacement
2012 Acura TL BaseSECTION Power Window Master Switch Replacement
- Remove the driver's door armrest (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

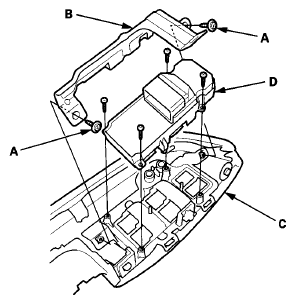

- Remove the two screws (A), then remove the bracket (B) from the armrest assembly (C).
- Remove the four screws and the power window master switch (D).
- Install the switch in the reverse order of removal.
- Resetting the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
