Power Relay Test: Notes
Special Tools Required

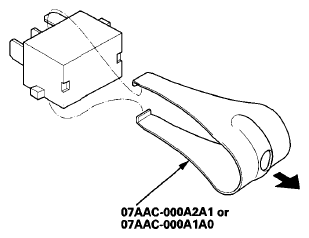

Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0
Use this chart to identify the type of relay, then do the test listed for it.
| Relay | Test | ||
|---|---|---|---|
| Accessory relay (with keyless access system) | Normally-open four-terminal type | ||
| A/C condenser fan relay(1) | |||
| A/C compressor clutch relay(1) | |||
| Blower motor relay(1) | |||
| Console accessory power socket | |||
| Driver's seat heater relay (high)(1) | |||
| Electronic throttle control system (ETCS) control relay(1) | |||
| Front accessory power socket relay* (with keyless access system) | |||
| Front accessory power socket relay (without keyless access system) | |||
| Headlight washer motor relay* (With headlight washer) | |||
| Ignition coil relay(1) | |||
| Front passenger's seat heater relay (high)(1) | |||
| PGM-FI main relay 1(1) | |||
| PGM-FI main relay 2(1) | |||
| PGM-FI subrelay(1) | |||
| Rear window defogger relay(1) | |||
| Starter cut relay 1 | |||
| Starter cut relay 2(1) | |||
| Seat ventilation relay* (with seat ventilation) | |||
| SH-AWD relay* (with SH-AWD) | |||
| + B cut relay (M/T) | |||
| ACC cut relay* (without keyless access system) | Five-terminal type | ||
| IG2 cut relay* (without keyless access system) | |||
| Driver's seat heater relay (low)(1) | |||
| Front passenger's seat heater relay (low)(1) | |||
|
|||
