Keyless Access System Mode Switch Test/Replacement
2012 Acura TL BaseSECTION Keyless Access System Mode Switch Test/Replacement
- Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

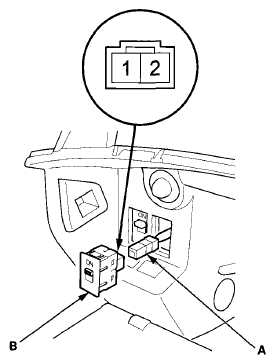

- Disconnect the 2P connector (A) from the keyless access system mode switch (B).
- Push out the keyless access system mode switch from the glove box.

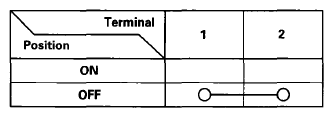

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, replace the switch.
- Install the switch in the reverse order of removal.
