2012 Acura TL BaseFACTORY OEM SERVICE PROCEDURE

Engine Start/Stop Switch Test/Replacement

  1. Remove the driver's center trim (see DASHBOARD CENTER TRIM REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the engine start/stop switch (B).

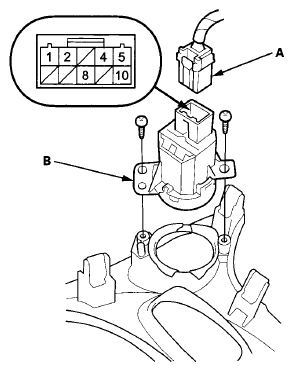

    Fig 1: Identifying 10P Connector And Engine Start/Stop Switch
    G08067810Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws, and the engine start/stop switch.
  4. Check for continuity between the terminals in each switch position according to the table.
    NOTE:
    • Make sure the correct test lead (+ or -) is placed on the terminal.
    • When checking for continuity across the diode, use the diode setting on the digital volt/ohm meter to check the diode bias.
    • Be careful of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).

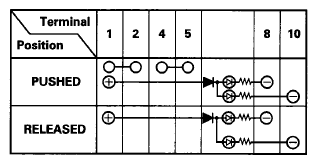

      Fig 2: Engine Start/Stop Switch Continuity Reference Chart
      G08067811Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the switch in the reverse order of removal.
