2012 Acura RLFACTORY OEM SERVICE PROCEDURE

Power Tilt/Telescopic Steering Control Unit Input Test/Replacement

  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ) and the driver's dashboard lower cover (see INSTRUMENT FASCIA REMOVAL/INSTALLATION ), then remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnected the 16P connector (A) and the 8P connector (B) from the power tilt/telescopic steering control unit (C).

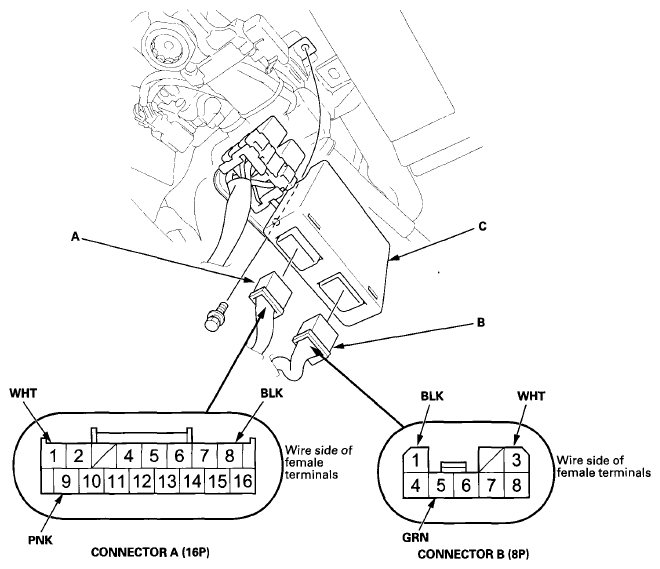

    Fig 1: Disconnecting 16P Connector And 8P Connector From Power Tilt/Telescopic Steering Control Unit
    G07363718Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. Reconnect the connectors to the power tilt/telescopic steering control unit, and do the following input tests.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the control unit must be faulty; replace it.
    TEST CONDITION AND WIRE REFERENCE CHART

    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    A8 BLK In all ignition switch positions Measure the voltage to ground: There should be less than 0.2 V.
    • Poor ground (G501, G503)
    • An open or high resistance in the ground wire
    B1 BLK
    A1 WHT Under all conditions Measure the voltage to ground: There should be battery voltage.
    • Blown No. 15 (40 A) fuse in the under-hood fuse/relay box
    • Blown No. 7 (10 A) fuse in the driver's under-dash fuse/relay box
    • An open or high resistance in the wire
    A9 PNK Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
    • Blown No. 21 (10 A) fuse in the driver's under-dash fuse/relay box
    • An open or high resistance in the wire
    B3 WHT Under all conditions Measure the voltage to ground: There should be battery voltage.
    • Blown No. 23 (P/W) (50 A) fuse in the under-hood fuse/relay box
    • Blown No. 26 (20 A) fuse in the driver's under-dash fuse/relay box
    • An open or high resistance in the wire
    B5 GRN Under all conditions Measure the voltage to ground: There should be battery voltage.
    • Blown No. 23 (P/W) (50 A) fuse in the under-hood fuse/relay box
    • Blown No. 25 (20 A) fuse in the driver's under-dash fuse/relay box
    • An open or high resistance in the wire
