2012 Acura MDXFACTORY OEM SERVICE PROCEDURE

CMP Sensor Replacement

Remove the timing belt (see TIMING BELT INSPECTION ).
Remove the front camshaft pulley (CMP pulse plate) (A).

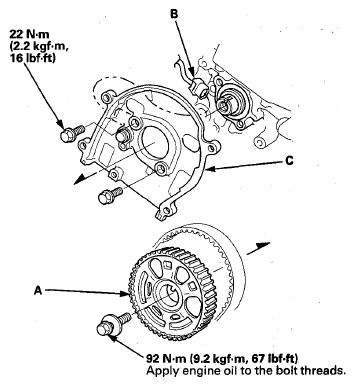

Fig 1: Identifying Front Camshaft Pulley (CMP Pulse Plate) And CMP Sensor 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the CMP sensor 3P connector (B), then remove the back cover (C).
Remove the CMP sensor (A) from the back cover.

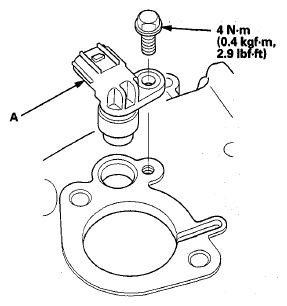

Fig 2: Identifying CMP Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal. Install the timing belt (see TIMING BELT INSTALLATION ).
Do the CKP pattern clear/CKP pattern learn procedure (see HDS CLEAR COMMAND ).
