2012 Acura MDXFACTORY OEM SERVICE PROCEDURE
Intake Air Resonator Removal/Installation
- Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
- Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
- Remove the battery (see RECONNECTION ).
- Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
- Remove the left side headlight (see WITH HEADLIGHT LEVELING SYSTEM ).

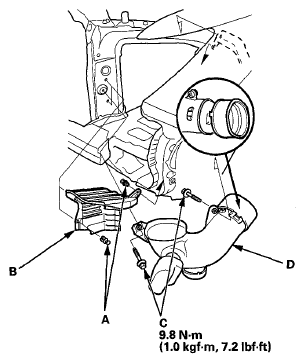

- Remove the clips (A) and cover (B).
- Remove the bolts (C), and resonator (D).
- Remove the bolts (A) and the resonator chamber (B).
- Install the parts in the reverse order of removal.
- Do the battery terminal reconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
- Adjust the headlight to local requirements (see HEADLIGHT ADJUSTMENT ).
