2012 Acura MDXFACTORY OEM SERVICE PROCEDURE

Engine Installation

Special Tools Required

  • Engine Hanger Adapter Set VSB02C000031 *
  • Engine Hanger Balance Bar VSB02C000019*
  • Engine Support Hanger, A and Reds AAR-T1256*
  • Front Subframe Adapter EQS02BMDXSB0*

*: Available through the Acura Tool and Equipment program, 888-424-6857.

  1. Install the engine mount bracket and accessory brackets, and tighten their bolts to the specified torque.

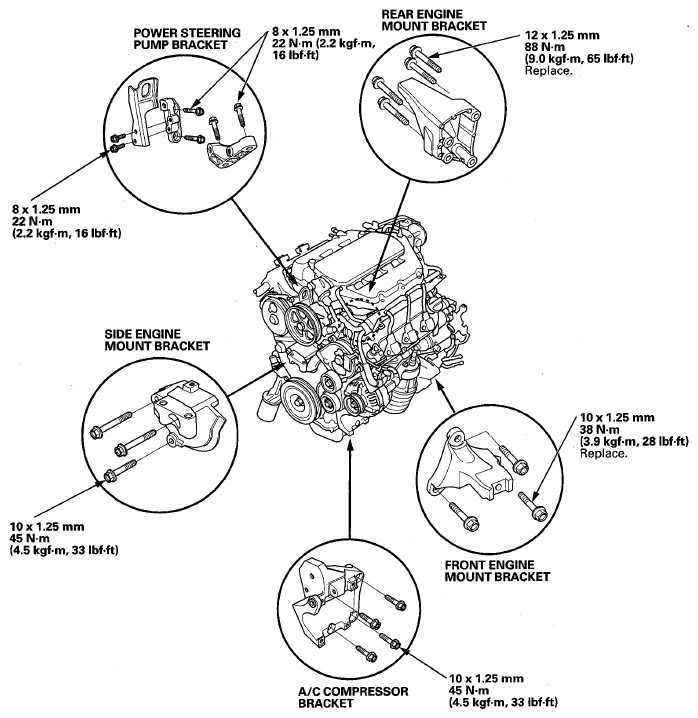

    Fig 1: Engine Mount Brackets With Torque Specifications
    G08052051Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Position the engine/transmission under the vehicle. Be sure that they are properly aligned. Carefully lower the vehicle until the engine/transmission are properly positioned in the engine compartment. Make sure the vehicle is not resting on any part of the engine/transmission. Support the engine/transmission with a chain hoist (A), and carefully raise the engine/transmission into place.
    NOTE: Reinstall the mounting bolts/support nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.
