2012 Acura MDXFACTORY OEM SERVICE PROCEDURE
VSA Modulator-Control Unit Removal and Installation: Removal
- Turn the ignition switch to LOCK (0).
- Remove the air cleaner box (see AIR CLEANER REMOVAL/INSTALLATION ).

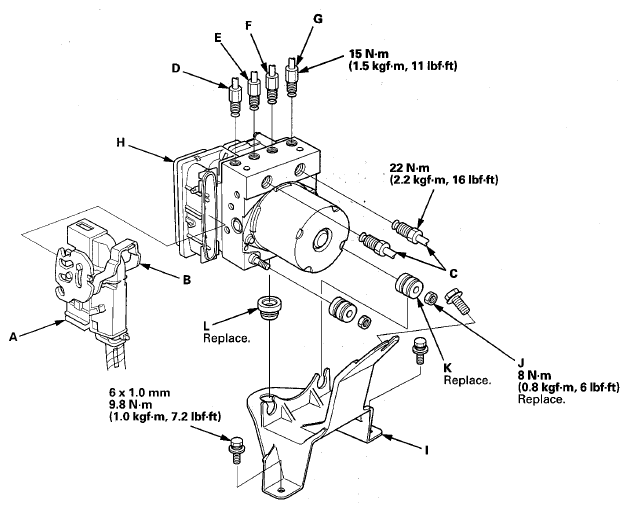

- Disconnect the VSA modulator-control unit 46P connector (A) by pulling up the lock (B); the connector disconnects itself.
- Disconnect the six brake lines from the VSA modulator-control unit.NOTE: Brake lines are connected to the master cylinder (C) and to the right-front (D), the left-rear (E), the right-rear (F), and the left-front (G) brake systems.
- Remove the VSA modulator-control unit (H) with the bracket (I) from the body.
- Remove the locknuts (J), then remove the VSA modulator-control unit from the bracket.NOTE: During installation, install a new bushing (K) and new grommets (L). Otherwise, unwanted noise and vibration may be transmitted to the vehicle.
