System Indicator: Notes

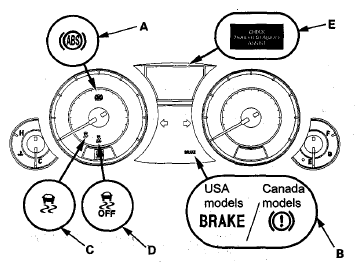

This system has four indicators and one warning:
- ABS indicator (A)
- Brake system indicator (B)
- VSA indicator (C)
- VSA OFF indicator (D)
- Trailer stability assist warning (E)
When the system detects a problem, it will turn the appropriate indicator on. Depending on the failure, the VSA modulator-control unit determines which indicators are turned on.
When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch to ON (II), then goes off.
