2012 Acura MDXFACTORY OEM SERVICE PROCEDURE
Rear Power Window Switch Test/Replacement
- Remove the rear door panel (see FRONT DOOR SIDE SILL SEAL REPLACEMENT ), and disconnect the 14P connector from the rear power window switch.
- Remove the power window switch panel (see FRONT DOOR SIDE SILL SEAL REPLACEMENT ).

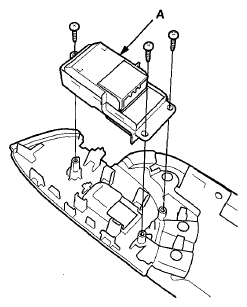

- Remove the three mounting screws and the rear power window switch (A).
- Swap the rear power window switch with another known-good power window switch and test. If the original power window switch is faulty; replace it.
- Install the switch in the reverse order of removal.
- Reset the power window control unit
