2012 Acura MDXFACTORY OEM SERVICE PROCEDURE

Front Passenger's Power Window Switch Test

  1. Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the 14P connector from the front passenger's power window switch.

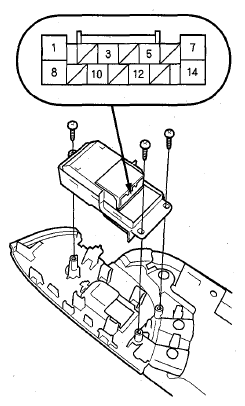

    Fig 1: Identifying 14P Connector On Front Passenger's Power Window Switch
    G08055427Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between the terminals in each switch position according to the table.

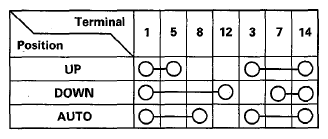

    Fig 2: Identifying Terminals Switch Position Reference Chart
    G08055428Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If the continuity is not as specified, replace the switch
