2012 Acura MDXFACTORY OEM SERVICE PROCEDURE
Front Passenger's Power Window Switch Replacement
- Remove the front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the 14P connector from the front passenger's power window switch.
- Remove the power window switch panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

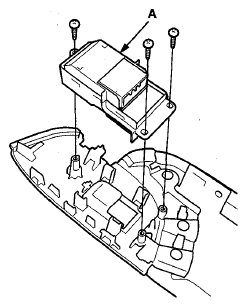

- Remove the three mounting screws and the front passenger's power window switch (A).
- Install the switch in the reverse order of removal.
- Reset the power window control unit
