2012 Acura MDXFACTORY OEM SERVICE PROCEDURE

Power Seat Control Unit Input Test

NOTE:
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
    NOTE: Be careful not to scratch the interior trim.
  3. Disconnect 40P connector (A) and 18P connector (B) from the power seat control unit (C).

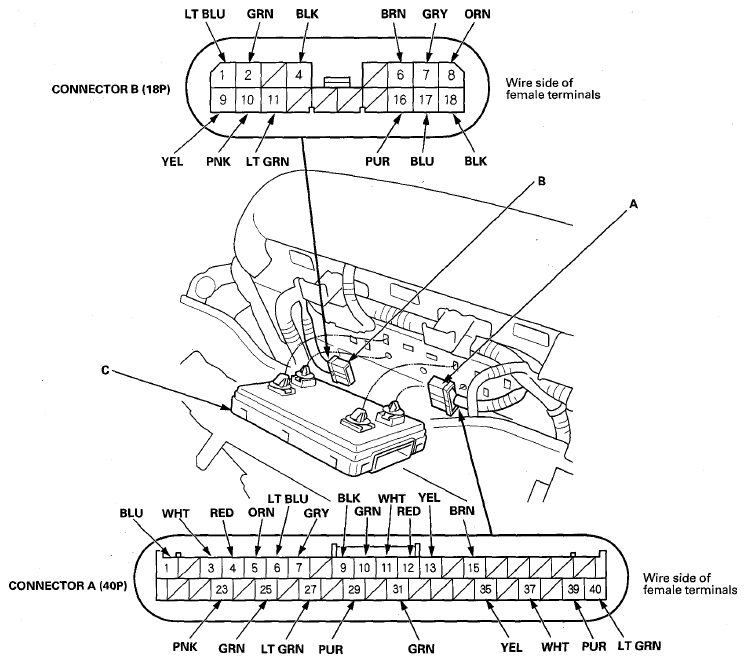

    Fig 1: Identifying 40P Connector And 18P Connector
    G08053970Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. With the connectors still disconnected, do the following input test:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 6.
    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    A37 WHT Under all conditions Measure the voltage to ground: There should be battery voltage.
    • Blown No. 7 (10 A) fuse in the under-dash fuse/relay box
    • Blown No. 4 (40 A) fuse in the main under-hood fuse box
    • Faulty under-dash fuse/relay box
    • Faulty main under-hood fuse box
    • An open or high resistance in the wire
  6. Reconnect the connectors to the power seat control unit, and do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the control unit must be faulty; replace it.
Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
A9 BLK In all ignition switch positions Measure the voltage to ground: There should be less than 0.2 V.
  • Poor ground (G602) or an open in the ground wire
  • An open or high resistance in the wire
B4 BLK
B18 BLK
A35 YEL Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
  • Blown No. 21 (7.5 A) fuse in the under-dash fuse/relay box
  • Faulty under-dash fuse/relay box
  • An open or high resistance in the wire
B1 LT BLU Under all conditions Measure the voltage to ground: There should be battery voltage.
  • Blown No. 2 (OP2) (40 A) fuse in the main under-hood fuse box
  • Blown No. 16 (20 A) fuse in the under-dash fuse/relay box
  • Faulty under-dash fuse/relay box
  • Faulty main under-hood fuse box
  • An open or high resistance in the wire
B8 ORN Under all conditions Measure the voltage to ground: There should be battery voltage.
  • Blown No. 2 (OP2) (40 A) fuse in the main under-hood fuse box
  • Blown No. 14 (20 A) fuse in the under-dash fuse/relay box
  • Faulty under-dash fuse/relay box
  • Faulty main under-hood fuse box
  • An open or high resistance in the wire
A31 GRN Shift lever in P position Measure the voltage to ground: There should be less than 0.2 V.
  • Faulty transmission range switch
  • Poor ground (G101) or an open or high resistance in the wire
Shift lever out of P position Measure the voltage to ground: There should be about 10 V. A short to ground in the wire
A1
.
A7		 BLU
.
GRY		 Side switch in FORWARD position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
A1
.
A27		 BLU
.
LT GRN		 Side switch in BACKWARD position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
A1
.
A6		 BLU
.
LT BLU		 Recline switch in FORWARD position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
A1
.
A25		 BLU
.
GRN		 Recline switch in BACKWARD position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
A1
.
A5		 BLU
.
ORN		 Front up-down switch in UP position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
A1
.
A4		 BLU
.
RED		 Front up-down switch in DOWN position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
A1
.
A23		 BLU
.
PNK		 Rear up-down switch in UP position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
A1
.
A3		 BLU
.
WHT		 Rear up-down switch in DOWN position Measure the voltage between the terminals: There should be less then 0.2 V.
  • Faulty driver's power seat adjustment switch
  • An open or high resistance in the wire
