2012 Acura MDXFACTORY OEM SERVICE PROCEDURE

Spark Plug Inspection

  1. Remove the ignition coils and the spark plugs (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION  ).
  2. Inspect the electrodes and the ceramic insulator.
    • Burned or worn electrodes may be caused by these conditions:
      • Advanced ignition timing
      • Loose spark plug
      • Plug heat range too hot
      • Insufficient cooling
    • Fouled plugs may be caused by these conditions:
      • Retarded ignition timing
      • Oil in combustion chamber
      • Incorrect spark plug gap
      • Plug heat range too cold
      • Excessive idling/low speed running
      • Clogged air cleaner element
      • Deteriorated ignition coils

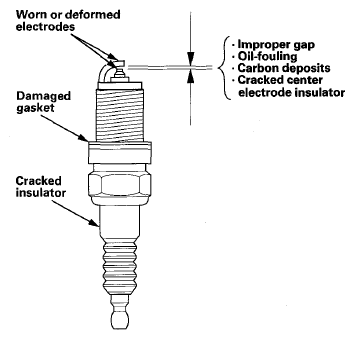

        Fig 1: Inspecting Electrodes And Ceramic Insulator
        G08051969Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Replace the plug at the specified interval, or if the center electrode (A) is rounded, or if the spark plug gap (B) is out of specification, or if the spark plug electrode is dirty or contaminated. Use only the spark plugs listed.
    NOTE:
    • Do not adjust the gap of iridium tip plugs.
    • Do not use a plug cleaner.

    Spark Plugs

    NGK: ILZKR7B-11S

    DENSO: SXU22HCR11S

    Electrode Gap

    Standard (New): 1.0-1.1 mm (0.039-0.043 in)

    Fig 2: Checking Spark Plug Gap
    G08051970Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the spark plugs and the ignition coils (see IGNITION COIL AND SPARK PLUG REMOVAL/INSTALLATION  ).
