Transfer Assembly: Inspection
Transfer Gear Backlash Measurement
- Set a dial indicator (A) on the transfer companion flange (B), position the dial indicator tip (C) on the top of the bolt (D).
- Measure the transfer gear backlash
Standard 0 06-0 16 mm (0 002-0 006 in)
Total Starting Torque Measurement

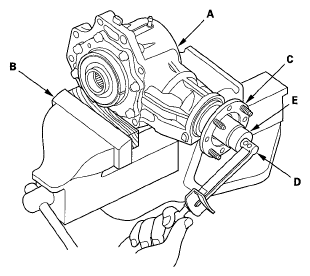

- Secure the transfer housing (A) in a bench vise (B) with soft jaws
- Rotate the transfer companion flange several times to seat the tapered roller bearings.
- Measure the starting torque at the companion flange (C) using a torque wrench (D) and a socket (E)
Standard 2 74-4 64 N m
(28 0-47 4 kgf cm, 24.3-41 1 lbf in)
- If the starting torque is out of standard, disassemble the transfer assembly, and repair it
