2011 Acura TL BaseFACTORY OEM SERVICE PROCEDURE

Multi-information Display Indication Pattern

WARNING: This page is about a different car, the 2010 Acura TL and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some examples of indication patterns are shown.

When the door is opened and the power mode is OFF, the display alternates every 3 seconds.

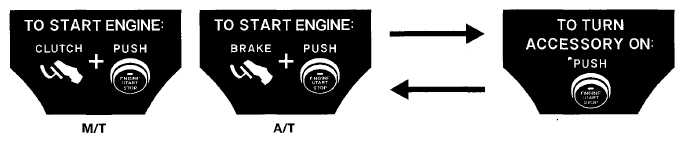

Fig 1: Multi-Information Display Indication Pattern (Door Opened And Power Mode OFF)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the power mode is ACC, the display alternates in 3 seconds.

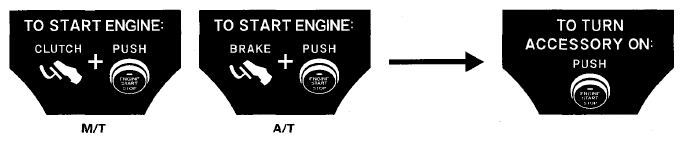

Fig 2: Multi-Information Display Indication Pattern (Power Mode ACC)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the power mode is ON.

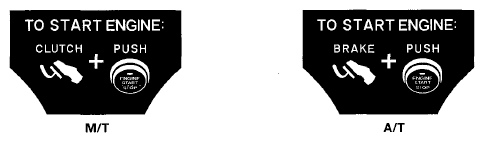

Fig 3: Multi-Information Display Indication Pattern (Power Mode ON)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
