2011 Acura TL BaseFACTORY OEM SERVICE PROCEDURE
ECT Sensor 1 Replacement
- Drain the engine coolant (see COOLANT REPLACEMENT ).

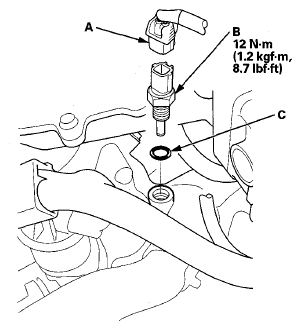

- Disconnect the ECT sensor 1 2P connector (A).
- Remove ECT sensor 1 (B).
- Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT REPLACEMENT ).
