2011 Acura TL BaseFACTORY OEM SERVICE PROCEDURE
Intake Air Resonator Removal/Installation
- Remove the splash separator (A)
- Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION )
- Remove the air cleaner (see THROTTLE BODY CLEANING )
- Remove the battery base (A)
- Remove the intake air duct (A)
- Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION )

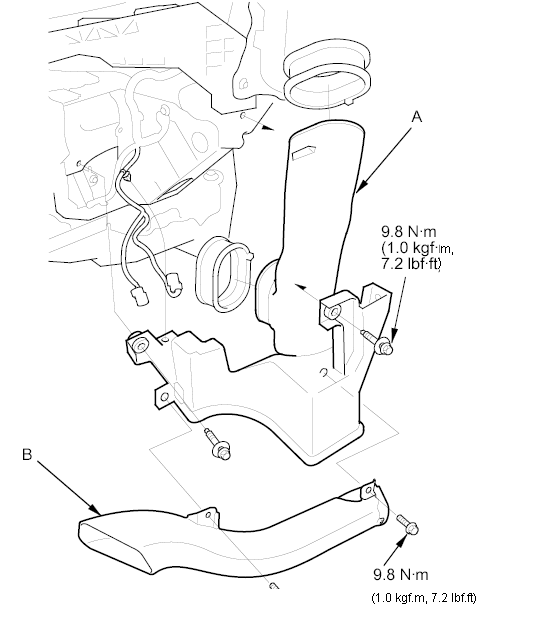

- Remove the intake air resonator (A)
- J37A4 engine: Remove the brake duct (B).
- Install the parts in the reverse order of removal
- Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION )
