2011 Acura TL BaseFACTORY OEM SERVICE PROCEDURE
Connector-To-Fuse/Relay Box Index

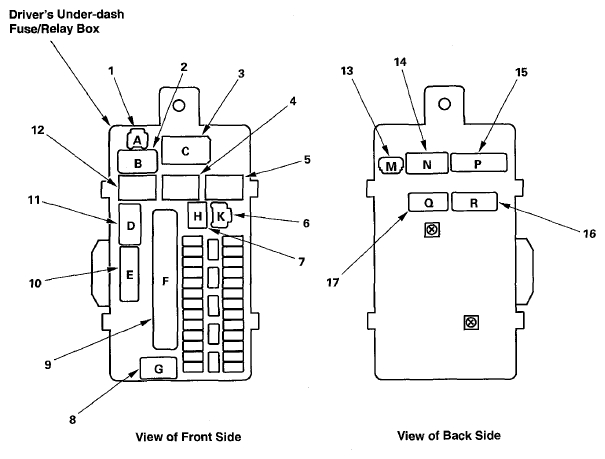

DRIVER'S UNDER -DASH FUSE/RELAY BOX
| Ref | Socket | Cavities | Connects to | Notes |
|---|---|---|---|---|
| 1 | A | - | Not Used | |
| 2 | B | 2 | Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| 3 | C | 5 | Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| 4 | Front Accessory Power Socket Relay (without Keyless Access) Accessory Relay (Keyless Access) | 4 | ||
| 5 | Starter Cut Relay 1 | 4 | ||
| 6 | K (MICU Service Check Connector) | 3 | Not Used | |
| 7 | H (Option Connector) | 12 | Not Used | |
| 8 | G | 13 | Left Engine Compartment Wire Harness (see CONNECTOR TERMINAL VIEWS ) | |
| 9 | F | 33 | Left Engine Compartment Wire Harness (see CONNECTOR TERMINAL VIEWS ) | |
| 10 | E | 20 | Left Side Wire Harness (see LEFT SIDE WIRE HARNESS (WITHOUT SH-AWD) ) | |
| 11 | D | 16 | Left Side Wire Harness (see LEFT SIDE WIRE HARNESS (WITHOUT SH-AWD) ) | |
| 12 | PGM-FI Main Relay 2 (Fuel Pump) | 4 | ||
| 13 | M | 4 | Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| 14 | N | 16 | Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| 15 | P | 20 | Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| 16 | R (Driver's MICU) | 24 | Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) | |
| 17 | Q (Driver's MICU) | 20 | Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) ) |
