2011 Acura MDXFACTORY OEM SERVICE PROCEDURE

MAF Sensor/IAT Sensor Replacement

Disconnect the MAF sensor/IAT sensor 5P connector (A).

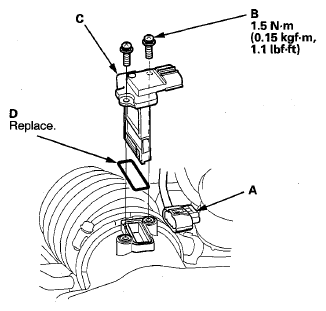

Fig 1: Identifying MAF Sensor/IAT Sensor 5P Connector And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (B).
Remove the MAF sensor/IAT sensor (C).
Install the parts in the reverse order of removal with a new O-ring (D).
