2011 Acura MDXFACTORY OEM SERVICE PROCEDURE
Fuel Pump Control Module Replacement
- Remove the cargo floor lid (see step 1 under TRIM REMOVAL/INSTALLATION - CARGO AREA ).
- On models with blind spot information (BSI), remove the BSI unit (see BSI CONTROL UNIT REMOVAL/INSTALLATION ) and/or the active damper control unit (see ACTIVE DAMPER CONTROL UNIT REPLACEMENT ).

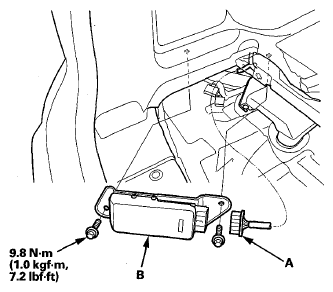

- Disconnect the fuel pump control module connector (A).
- Remove the fuel pump control module (B).
- Install the parts in the reverse order of removal.
