2011 Acura MDXFACTORY OEM SERVICE PROCEDURE

Driving Position Memory Switch Test/Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector (A) from the driving position memory switch (B).

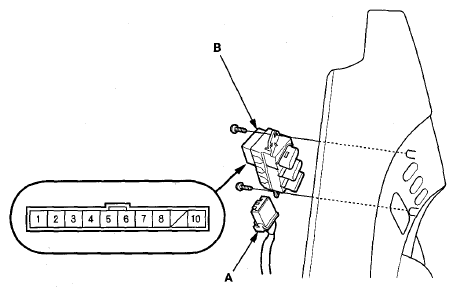

Fig 1: Identifying 10P Connector Terminals And Driving Position Memory Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, then remove the switch from the door panel.
Check for continuity between the terminals in each switch position according to the table.

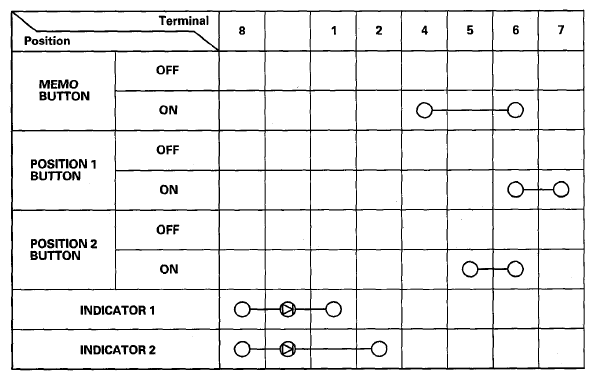

Fig 2: Driving Position Memory Switch Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
