Navigation Function: Notes

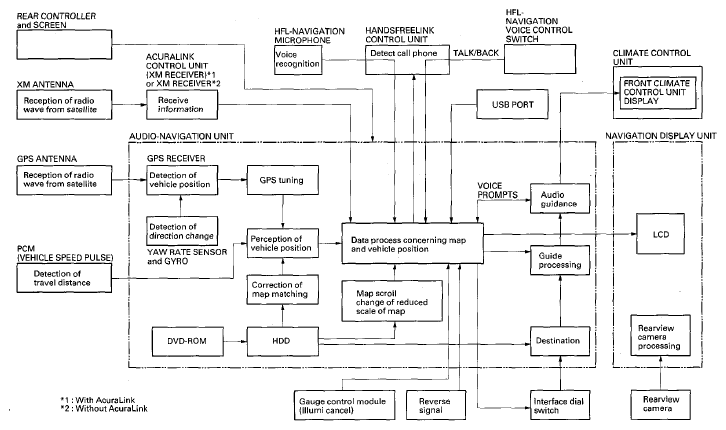

The navigation system is composed of the audio-navigation unit, the PCM (vehicle speed signal), the AcuraLink control unit (traffic and weather information), the HandsFreeLink control unit (to send a POI phone number or place a call) the GPS antenna, microphone, the voice control switch, navigation display unit and front climate control unit display.
