2009 Acura TSX AutomaticFACTORY OEM SERVICE PROCEDURE

CMP Sensor A Replacement

Disconnect the CMP sensor A connector (B)

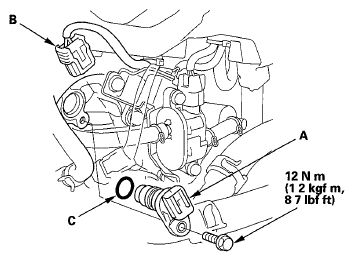

Fig 1: CMP Sensor A Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove CMP sensor A from the intake camshaft side of the cylinder head
Install the parts in the reverse order of removal with a new O-ring (C)
