2009 Acura TSX AutomaticFACTORY OEM SERVICE PROCEDURE

PCV Valve Inspection

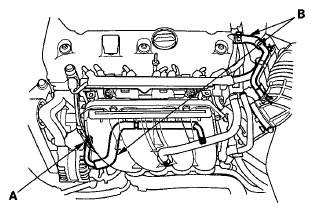

Check the PCV valve (A), hoses (B), and connections for leaks or restrictions

Fig 1: Identifying PCV Valve And Hoses

Courtesy of AMERICAN HONDA MOTOR CO., INC.

At idle, make sure there is a clicking sound from the PCV valve when the hose between the PCV valve and intake manifold is lightly pinched (A) with your fingers or pliers
If there is no clicking sound, check the PCV valve washer for cracks or damage If the washer is OK, replace the PCV valve and recheck

Fig 2: Identifying PCV Valve And Intake Manifold Pinched
Courtesy of AMERICAN HONDA MOTOR CO., INC.
