2009 Acura CSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Intake Air Bypass Control Thermal Valve Replacement
- Remove the engine cover (see step 2 on REMOVAL-K20Z2 ).
- Remove the air intake duct.
- K20Z2 engine (see K20Z2 ENGINE )
- K20Z3 engine (see K20Z3 ENGINE )

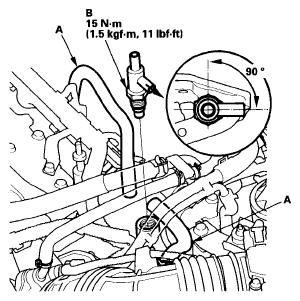

- Disconnect the hoses (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
* : This illustration shows K20Z2 engine.
- Remove the intake air bypass control thermal valve (B).
- Install the parts in the reverse order of removal.NOTE: Position the valve angle as shown.
