2009 Acura CSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Air Cleaner Element Inspection/Replacement

  1. Open the air cleaner housing cover (A).

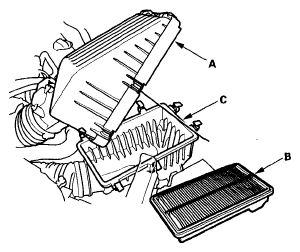

    Fig 1: Identifying Air Cleaner Housing Cover And Element
    G06264764Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner element (B) from the air cleaner housing (C).
  3. Check the air cleaner element for damage or clogging. If there is damage or clogging, replace the air cleaner element.
    NOTE: Do not use compressed air to clean the air cleaner element.
  4. Install the parts in the reverse order of removal. Clean and remove any debris from inside the air cleaner housing.
  5. If the maintenance minder required to replace the air cleaner element, reset the maintenance minder (see MAINTENANCE MAIN ITEMS ), and this procedure is complete. If the maintenance minder did not require to replace the air cleaner, go to step 6.
  6. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
    Fig 2: Identifying Data Link Connector
    G06264765Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Turn the ignition switch ON (II).
  8. Make sure the HDS communicates with the ECM/ PCM and other vehicle systems. If it doesn't, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
  9. Select BODY ELECTRICAL with the HDS.
  10. Select ADJUSTMENT in the GAUGES MENU with the HDS.
  11. Select RESET in the MAINTENANCE MINDER with the HDS.
  12. Select MAINTENANCE SUB ITEM 2 RESET with the HDS.
