2009 Acura CSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Tank Unit Removal/Installation: Installation

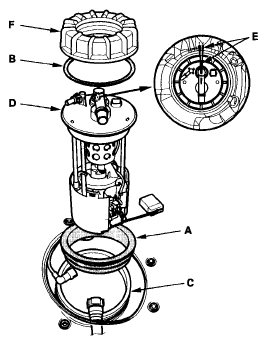

- Install a new base gasket (A), and locknut plate (B) to the fuel tank (C).
- Insert the fuel tank unit (D) into the fuel tank. Be careful not to bend the fuel gauge sending unit.
- Align the marks (E) on the fuel tank and the fuel tank unit, then tighten a new locknut (F) by hand.NOTE:
- After tightening, make sure the marks are aligned. Check the circumference of the base gasket visually or by hand and be sure that the gasket is not pinched.
- Do not coat the base gasket or the locknut plate with oil.
- Using the tool, tighten the fuel tank unit locknut (A).NOTE: After installation, check the base gasket visually or by hand to be sure the gasket is not pinched.
